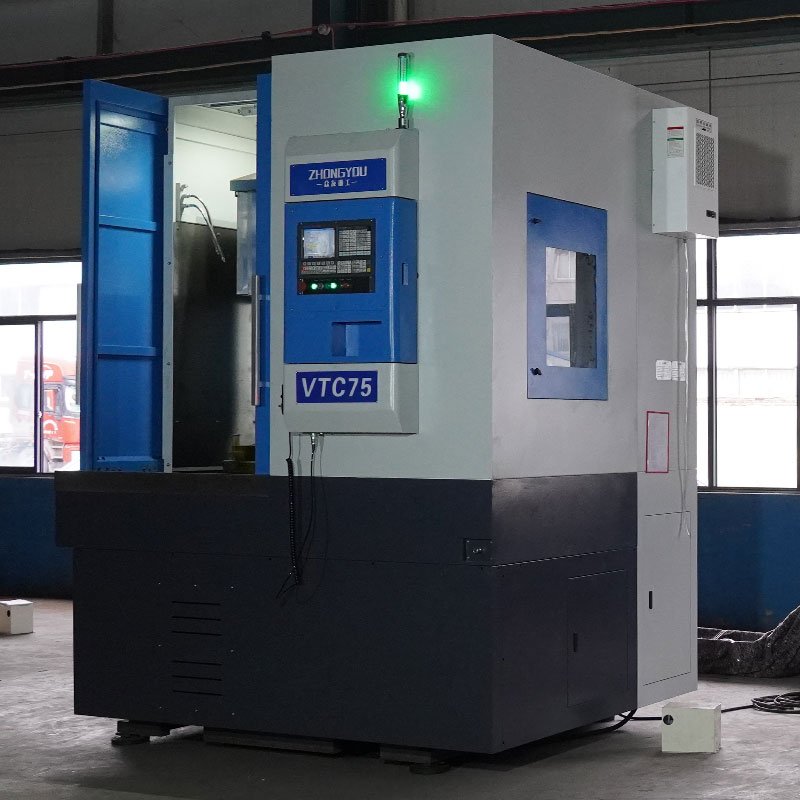

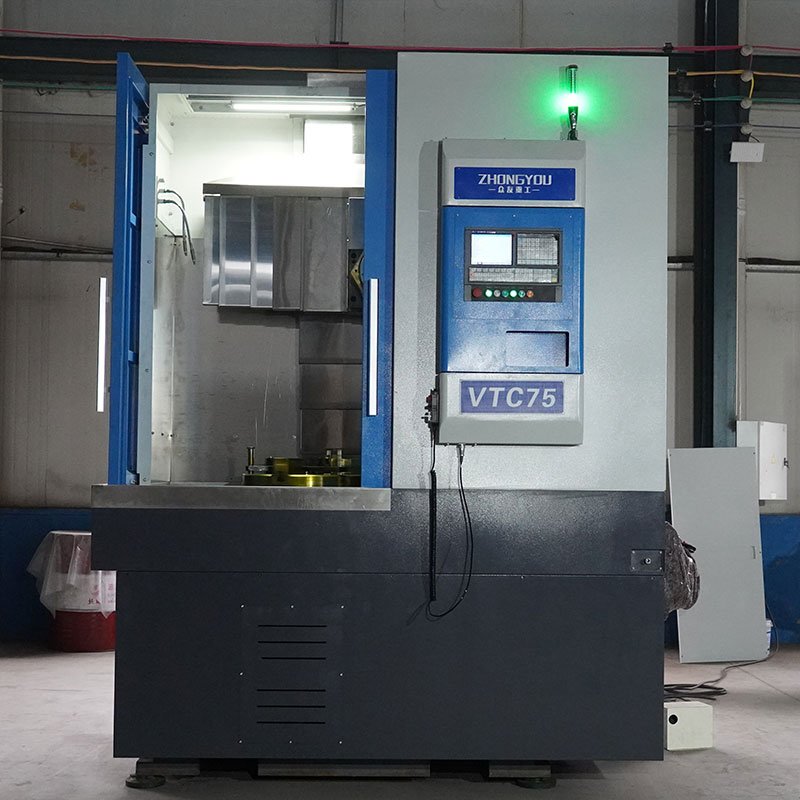

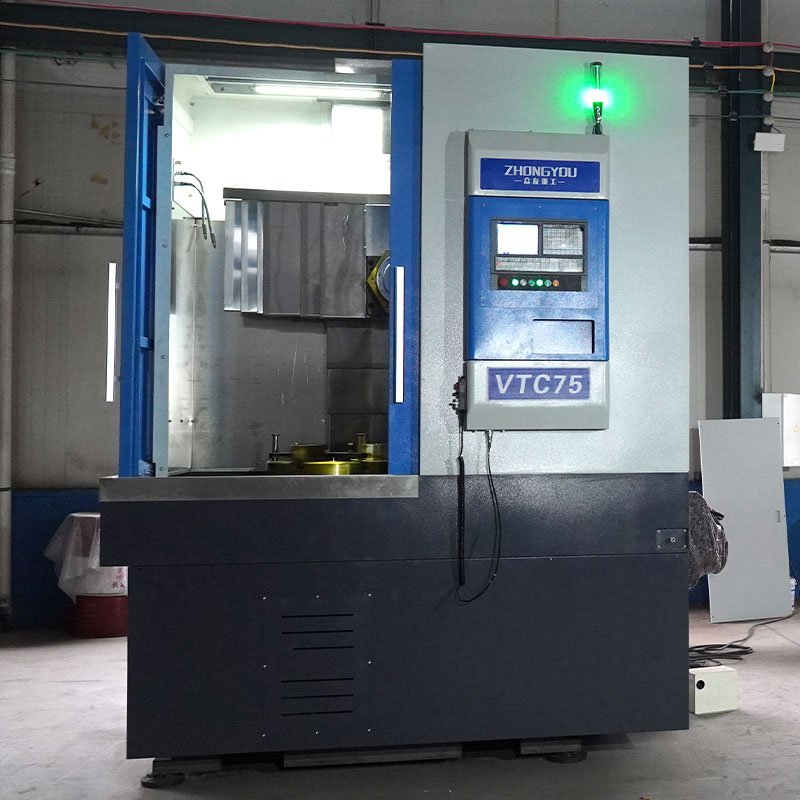

Construction Machinery Drive Wheels CNC Vertical Lathe
The 75 vertical lathe (typically referring to a CNC ver […]
Description
The 75 vertical lathe (typically referring to a CNC vertical lathe with a maximum swivel diameter of approximately 750 mm) is the ideal choice for machining drive wheels for construction machinery (such as drive sprockets for excavators and bulldozers). These drive wheels typically feature large diameters, complex tooth profiles, and heavy-duty service conditions. With its moderate machining range and robust cutting rigidity, the 75 vertical lathe is perfectly suited for the entire process, from rough machining of the blank to the finishing of the tooth profile.

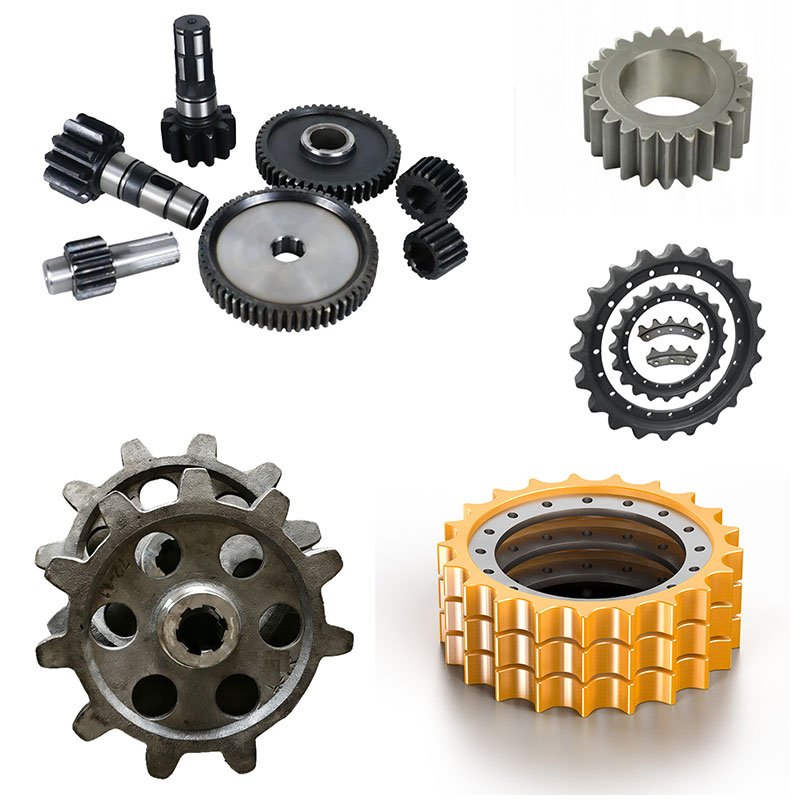

The 75-series vertical lathe has been successfully applied to the machining of various types of construction machinery drive wheels, such as:
Excavator drive wheels: Compatible with models such as Yanmar VIO75 and Sany SANY75, with gear ring precision meeting GB/T 10095-2008 Grade 7;
Crawler crane drive wheels: Machining drive wheels for Fuwang 75-ton crawler cranes, with inner bore cylindricity ≤0.02 mm;
Mining machinery drive wheels: Processed high-manganese steel (Mn13) material; by optimizing cutting parameters (spindle speed 80–120 rpm, feed rate 0.1–0.2 mm/r), tool life was extended by 50%.
Technical Specifications
| Specification Item | Unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
|---|---|---|---|---|---|---|
| Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle End Face Type | – | Straight | Straight | Straight | Straight | Straight |
| Spindle Speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Chuck Diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool Capacity | pc | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station |
| External Tool Shank | mm | 32 | 32 | 32 | 32 | 32 |
| Internal Tool Shank | mm | ∮40 | ∮40 | – | ∮50 | ∮50 |
| X-axis Travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z-axis Travel | mm | 500 | 600 | 700 | 500 | 700 |
| Hydraulic Tank Capacity | L | 50 | 50 | 50 | 50 | 50 |
| Hydraulic Motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Coolant Tank Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Coolant Pump | W | 250 | 450 | 450 | 450 | 450 |
| Coolant Power | kW | 250 | 450 | 450 | 450 | 450 |
| X-axis Servo Motor | Nm | 12 | 18 | 18 | 15 | 15 |
| Z-axis Servo Motor | N·m | 22 | 30 | 18 | 15 | 15 |
| Spindle Servo Motor | kW | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeatability | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimensions (L×W×H) | mm | 1700×1880×2500 | 2000×1950×3000 | 2450×1900×3200 | 3000×2400×2700 | 3200×2400×3200 |
| Weight (with accessories) | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Power Supply | – | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% |
| Leakage/Power Failure Protection | – | Yes | Yes | Yes | Yes | Yes |
| Three-color Light Indicator | – | Yes | Yes | Yes | Yes | Yes |
| Long-term Stable Operating Conditions | – | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% |
| Noise Compliance with National Standards | – | Yes | Yes | Yes | Yes | Yes |
| ☆ The equipment features full enclosure protection with reliable safety devices, complying with GB15760-1995 “Safety Protection Technical Conditions for Metal Cutting Machine Tools”.^[1]^
☆ Equipped with various hydraulic, pneumatic, and water pipeline indicators, marking the working ranges of all instruments and the grades of media used.^[2]^ ☆ Hydraulic chuck diameter and tool post stations can be selected according to processing requirements.^[3]^ |
||||||
Application Cases
Customer Cases
Video
Technical Specifications
| Specification Item | Unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
|---|---|---|---|---|---|---|
| Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle End Face Type | – | Straight | Straight | Straight | Straight | Straight |
| Spindle Speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Chuck Diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool Capacity | pc | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station |
| External Tool Shank | mm | 32 | 32 | 32 | 32 | 32 |
| Internal Tool Shank | mm | ∮40 | ∮40 | – | ∮50 | ∮50 |
| X-axis Travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z-axis Travel | mm | 500 | 600 | 700 | 500 | 700 |
| Hydraulic Tank Capacity | L | 50 | 50 | 50 | 50 | 50 |
| Hydraulic Motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Coolant Tank Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Coolant Pump | W | 250 | 450 | 450 | 450 | 450 |
| Coolant Power | kW | 250 | 450 | 450 | 450 | 450 |
| X-axis Servo Motor | Nm | 12 | 18 | 18 | 15 | 15 |
| Z-axis Servo Motor | N·m | 22 | 30 | 18 | 15 | 15 |
| Spindle Servo Motor | kW | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeatability | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimensions (L×W×H) | mm | 1700×1880×2500 | 2000×1950×3000 | 2450×1900×3200 | 3000×2400×2700 | 3200×2400×3200 |
| Weight (with accessories) | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Power Supply | – | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% |
| Leakage/Power Failure Protection | – | Yes | Yes | Yes | Yes | Yes |
| Three-color Light Indicator | – | Yes | Yes | Yes | Yes | Yes |
| Long-term Stable Operating Conditions | – | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% |
| Noise Compliance with National Standards | – | Yes | Yes | Yes | Yes | Yes |
| ☆ The equipment features full enclosure protection with reliable safety devices, complying with GB15760-1995 “Safety Protection Technical Conditions for Metal Cutting Machine Tools”.^[1]^
☆ Equipped with various hydraulic, pneumatic, and water pipeline indicators, marking the working ranges of all instruments and the grades of media used.^[2]^ ☆ Hydraulic chuck diameter and tool post stations can be selected according to processing requirements.^[3]^ |
||||||
Application Cases
Customer Cases
Product Advantages
High Precision Machining
Equipped with precision spindle and guide rail system, ensuring machining accuracy up to ±0.005mm
High Efficiency
High automation level increases production efficiency by over 60% compared to traditional machines
Energy Saving
Energy-saving motors and optimized design reduce energy consumption by 30%
Stable & Reliable
Key components from international brands ensure long-term stable operation
