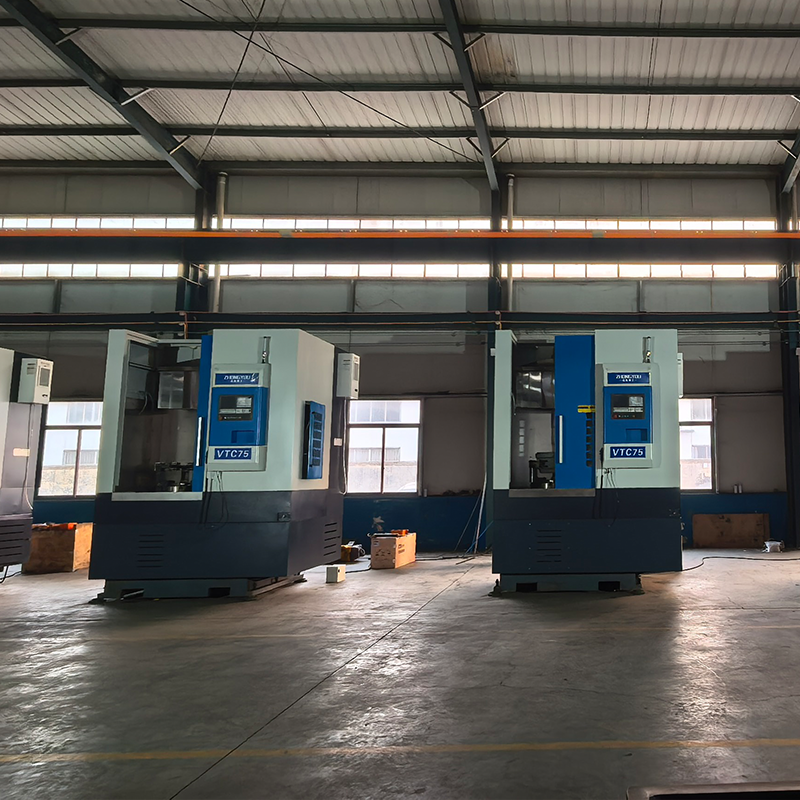

High Precision VTC75 CNC Vertical Turning Lathe with Automatic Tool Turret
VTC75 CNC Vertical Lathe Machine is a high-performance […]
Description
VTC75 CNC Vertical Lathe Machine is a high-performance precision machining equipment designed for turning large diameter and heavy rotary components. With a rigid structure, powerful spindle system and advanced CNC control technology, this machine provides excellent machining accuracy, stability and efficiency for various industrial applications.
The VTC75 vertical turning lathe adopts a high-rigidity machine structure, which improves vibration resistance during heavy cutting operations and ensures long-term machining precision. The vertical spindle design allows large and heavy workpieces to be installed more conveniently, making it especially suitable for machining disc-shaped and short cylindrical parts.
Equipped with an automatic tool turret, the machine can complete multiple machining processes including outer diameter turning, inner hole machining, end face machining, and groove cutting. The CNC control system provides simple operation, high automation and stable performance, helping manufacturers improve production efficiency and reduce labor costs.
The VTC75 CNC vertical lathe features a maximum swing diameter of 750mm and a maximum turning diameter of 700mm. The X-axis and Z-axis travel can reach 700mm, providing a wide machining range for different workpiece sizes. The spindle speed range and powerful servo motor ensure efficient cutting performance and excellent surface finishing quality.
This CNC vertical lathe is widely used in automotive parts, wind power components, engineering machinery parts, flange manufacturing, valve bodies, pump housings, brake discs and other industries. It is an ideal solution for customers requiring high precision, high efficiency and reliable machining performance.
As a professional CNC machine manufacturer, Zhongyou provides customized CNC vertical lathes with CE and ISO certification, supporting different machining requirements from global customers.
Technical Specifications
| pecification Item | Unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
|---|---|---|---|---|---|---|
| Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle End Face Type | – | Straight | Straight | Straight | Straight | Straight |
| Spindle Speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Chuck Diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool Capacity | pc | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station |
| External Tool Shank | mm | 32 | 32 | 32 | 32 | 32 |
| Internal Tool Shank | mm | ∮40 | ∮40 | – | ∮50 | ∮50 |
| X-axis Travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z-axis Travel | mm | 500 | 600 | 700 | 500 | 700 |
| Hydraulic Tank Capacity | L | 50 | 50 | 50 | 50 | 50 |
| Hydraulic Motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Coolant Tank Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Coolant Pump | W | 250 | 450 | 450 | 450 | 450 |
| Coolant Power | kW | 250 | 450 | 450 | 450 | 450 |
| X-axis Servo Motor | Nm | 12 | 18 | 18 | 15 | 15 |
| Z-axis Servo Motor | N·m | 22 | 30 | 18 | 15 | 15 |
| Spindle Servo Motor | kW | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeatability | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimensions (L×W×H) | mm | 1700×1880×2500 | 2000×1950×3000 | 2450×1900×3200 | 3000×2400×2700 | 3200×2400×3200 |
| Weight (with accessories) | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Power Supply | – | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% |
| Leakage/Power Failure Protection | – | Yes | Yes | Yes | Yes | Yes |
| Three-color Light Indicator | – | Yes | Yes | Yes | Yes | Yes |
| Long-term Stable Operating Conditions | – | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% |
| Noise Compliance with National Standards | – | Yes | Yes | Yes | Yes | Yes |
| ☆ The equipment features full enclosure protection with reliable safety devices, complying with GB15760-1995 “Safety Protection Technical Conditions for Metal Cutting Machine Tools”.^[1]^
☆ Equipped with various hydraulic, pneumatic, and water pipeline indicators, marking the working ranges of all instruments and the grades of media used.^[2]^ ☆ Hydraulic chuck diameter and tool post stations can be selected according to processing requirements.^[3]^ |
||||||
Application Cases
Customer Cases
Video
Technical Specifications
| pecification Item | Unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
|---|---|---|---|---|---|---|
| Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle End Face Type | – | Straight | Straight | Straight | Straight | Straight |
| Spindle Speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Chuck Diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool Capacity | pc | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station |
| External Tool Shank | mm | 32 | 32 | 32 | 32 | 32 |
| Internal Tool Shank | mm | ∮40 | ∮40 | – | ∮50 | ∮50 |
| X-axis Travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z-axis Travel | mm | 500 | 600 | 700 | 500 | 700 |
| Hydraulic Tank Capacity | L | 50 | 50 | 50 | 50 | 50 |
| Hydraulic Motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Coolant Tank Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Coolant Pump | W | 250 | 450 | 450 | 450 | 450 |
| Coolant Power | kW | 250 | 450 | 450 | 450 | 450 |
| X-axis Servo Motor | Nm | 12 | 18 | 18 | 15 | 15 |
| Z-axis Servo Motor | N·m | 22 | 30 | 18 | 15 | 15 |
| Spindle Servo Motor | kW | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeatability | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimensions (L×W×H) | mm | 1700×1880×2500 | 2000×1950×3000 | 2450×1900×3200 | 3000×2400×2700 | 3200×2400×3200 |
| Weight (with accessories) | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Power Supply | – | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% |
| Leakage/Power Failure Protection | – | Yes | Yes | Yes | Yes | Yes |
| Three-color Light Indicator | – | Yes | Yes | Yes | Yes | Yes |
| Long-term Stable Operating Conditions | – | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% |
| Noise Compliance with National Standards | – | Yes | Yes | Yes | Yes | Yes |
| ☆ The equipment features full enclosure protection with reliable safety devices, complying with GB15760-1995 “Safety Protection Technical Conditions for Metal Cutting Machine Tools”.^[1]^
☆ Equipped with various hydraulic, pneumatic, and water pipeline indicators, marking the working ranges of all instruments and the grades of media used.^[2]^ ☆ Hydraulic chuck diameter and tool post stations can be selected according to processing requirements.^[3]^ |
||||||
Application Cases
Customer Cases
Product Advantages
High Precision Machining
Equipped with precision spindle and guide rail system, ensuring machining accuracy up to ±0.005mm
High Efficiency
High automation level increases production efficiency by over 60% compared to traditional machines
Energy Saving
Energy-saving motors and optimized design reduce energy consumption by 30%
Stable & Reliable
Key components from international brands ensure long-term stable operation
