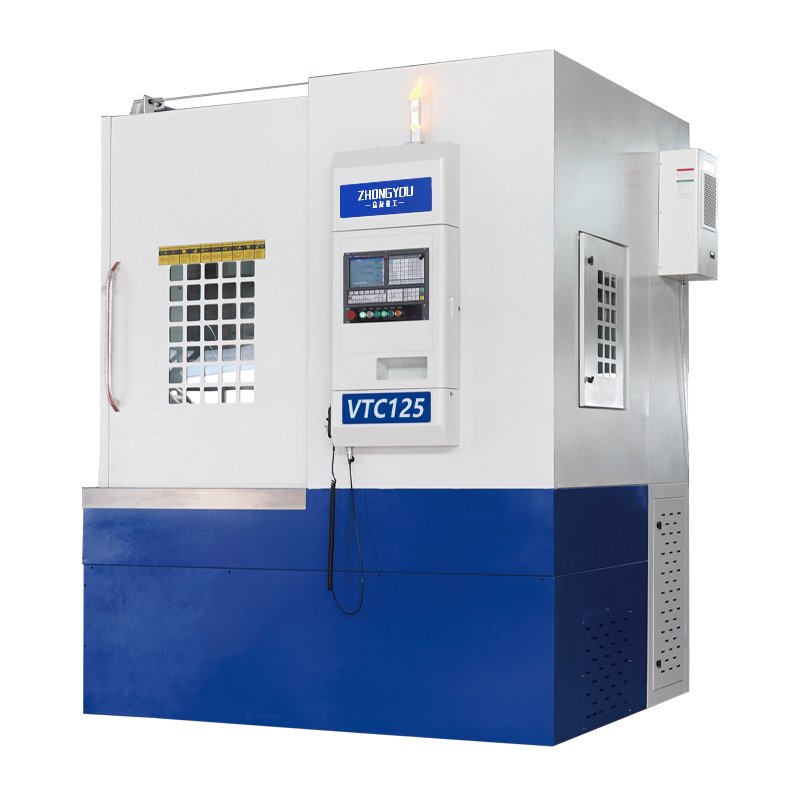

vertical cnc Motor End Covers
A CNC vertical lathe is a CNC machine tool featuring a […]
Description
A CNC vertical lathe is a CNC machine tool featuring a vertically mounted spindle and a horizontally rotating worktable, specifically designed for machining rotary workpieces (such as shafts, discs, and rings). By program-controlling the tool path, it achieves efficient, high-precision automated machining and is widely used in the manufacture of components such as wind turbine gearbox housings, automotive wheel hubs, and brake drums.
Equipment Advantages
High-Precision Machining: Precision spindle and guideway systems ensure dimensional accuracy of parts.
High-Efficiency Production: High degree of automation reduces manual intervention and increases production capacity.
Energy-Efficient and Eco-Friendly: Optimized hydraulic system design reduces energy consumption and operating costs.
Stable and Reliable: Key components use imported brands, resulting in low failure rates and long service life.
Typical Applications
Wind Power Industry: Machining large rotary parts such as gearbox housings and wheel hubs.
Automotive Manufacturing: Forming high-density components such as wheel hubs, brake drums, and flywheel housings.
Machining: Suitable for rough and finish machining of disc-shaped, sleeve-shaped, and short-shaft parts.
Technical Specifications
| 加工 范围 |
最大回转直径 | Maximm tuning diaretr | mm | 500 | 650 | 750 | 900 | 1000 | 1250 | 1400 | 1600 | |
| 最大车削直径 | Mxirum tuning diaretr | mm | 450 | 600 | 700 | 800 | 850 | 1000 | 1200 | 1400 | ||
| 卡盘 | 三爪液压卡盘直径 | Three jiaw hydraulic chuck diamena | M | 12 | 21 | 24 | 24 | 24 | 32 | 手动四爪卡1250 | 手动四爪卡盘1400 | |
| 刀塔 | 刀塔形式 | Turet frm | 卧式8工位 | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | ||
| 行程 | X轴行程 | Tool towe X axis travel | mm | 400 | 430 | 720 | 700 | 700 | -50-650 | -50-750 | -50-850 | |
| Z轴行程 | Tunet Z-axs ravel | mm | 500 | 550 | 750 | 700 | 700 | 800 | 800 | 800 | ||
| 刀塔下端面距卡盘上端面距离 | Distence between owe eng face of turet andLpo cnd face duck |
170-560 | 0-550 | 850 | 0-800 | 0-800 | 150-950 | 150-950 | 150-950 | |||
| 线规 丝杠 |
X/Z线规 | x/Z wre gauge | 45滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 55/55滚柱 | 55/65滚柱 | 65滚柱 | ||
| X/Z丝杠直径 | X/Z srew daneta | mm | φ40 | φ40/φ50 | φ40 | φ40/φ50 | φ40/φ50 | φ50/φ50 | φ50 | ①63 | ||
| 外形 尺寸 |
长×宽×高 | Lergh ×wich ×heif | m | 2.3×2.2×3.2 | 2.35*2.26*3.2 | 2.7×2.1×3.4 | 2.5×2.25×3.15 | 2.6×2.35×3.15 | 2.7×2.85×3.25 | 2.8×2.95×3.25 | 3.0×3.0×3.25 | |
| 18.8万 | 24.5 | 25.8 | 26.8 | 28 | 36.6 | 47.6 | 57.8 |
Application Cases
Customer Cases
Video
Technical Specifications
| 加工 范围 |
最大回转直径 | Maximm tuning diaretr | mm | 500 | 650 | 750 | 900 | 1000 | 1250 | 1400 | 1600 | |
| 最大车削直径 | Mxirum tuning diaretr | mm | 450 | 600 | 700 | 800 | 850 | 1000 | 1200 | 1400 | ||
| 卡盘 | 三爪液压卡盘直径 | Three jiaw hydraulic chuck diamena | M | 12 | 21 | 24 | 24 | 24 | 32 | 手动四爪卡1250 | 手动四爪卡盘1400 | |
| 刀塔 | 刀塔形式 | Turet frm | 卧式8工位 | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | ||
| 行程 | X轴行程 | Tool towe X axis travel | mm | 400 | 430 | 720 | 700 | 700 | -50-650 | -50-750 | -50-850 | |
| Z轴行程 | Tunet Z-axs ravel | mm | 500 | 550 | 750 | 700 | 700 | 800 | 800 | 800 | ||
| 刀塔下端面距卡盘上端面距离 | Distence between owe eng face of turet andLpo cnd face duck |
170-560 | 0-550 | 850 | 0-800 | 0-800 | 150-950 | 150-950 | 150-950 | |||
| 线规 丝杠 |
X/Z线规 | x/Z wre gauge | 45滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 55/55滚柱 | 55/65滚柱 | 65滚柱 | ||
| X/Z丝杠直径 | X/Z srew daneta | mm | φ40 | φ40/φ50 | φ40 | φ40/φ50 | φ40/φ50 | φ50/φ50 | φ50 | ①63 | ||
| 外形 尺寸 |
长×宽×高 | Lergh ×wich ×heif | m | 2.3×2.2×3.2 | 2.35*2.26*3.2 | 2.7×2.1×3.4 | 2.5×2.25×3.15 | 2.6×2.35×3.15 | 2.7×2.85×3.25 | 2.8×2.95×3.25 | 3.0×3.0×3.25 | |
| 18.8万 | 24.5 | 25.8 | 26.8 | 28 | 36.6 | 47.6 | 57.8 |
Application Cases
Customer Cases
Product Advantages
High Precision Machining
Equipped with precision spindle and guide rail system, ensuring machining accuracy up to ±0.005mm
High Efficiency
High automation level increases production efficiency by over 60% compared to traditional machines
Energy Saving
Energy-saving motors and optimized design reduce energy consumption by 30%
Stable & Reliable
Key components from international brands ensure long-term stable operation
